ADSS Fiber Optic Cable Plastic Wedge Type Anchor Strain Clamp for Power Line Accessories Herrajes de

Description

Anchoring clamp is used for fastening and tension of self-supporting optical round cables during overhead/aerial cable laying. Allowable cable diameter is in the range of 6 to 20 mm.
      These anchoring clamps allow an easy and quick cable installation by gripping directly onto cable outer sheath without need to use additional protector.

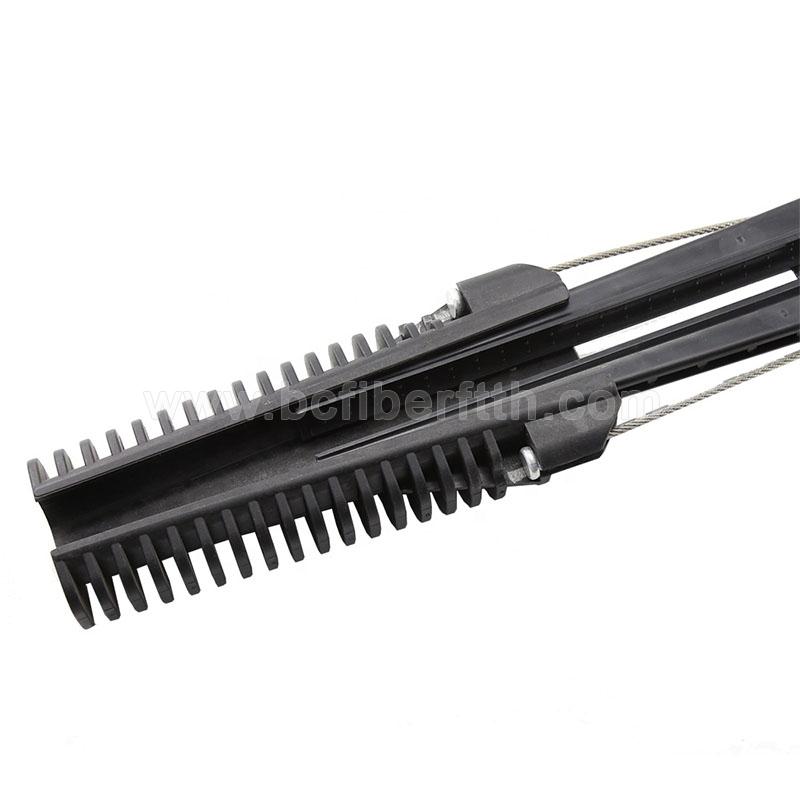

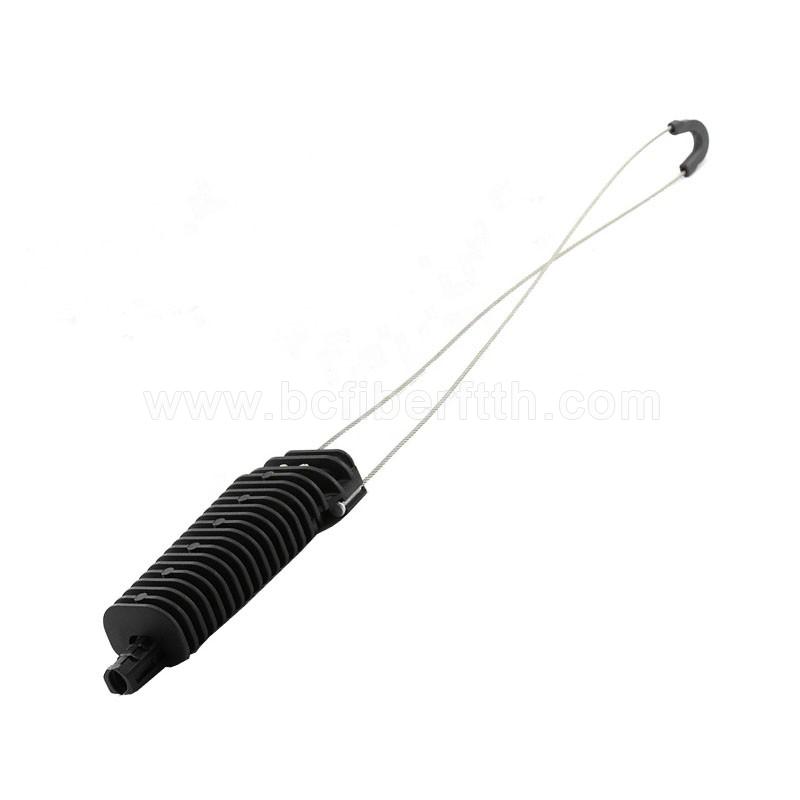

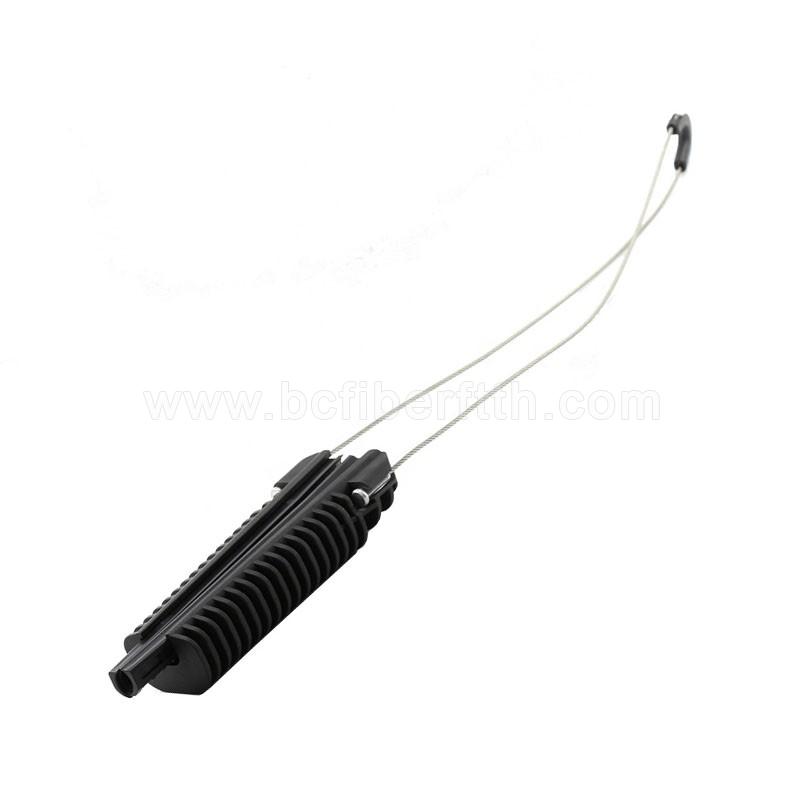

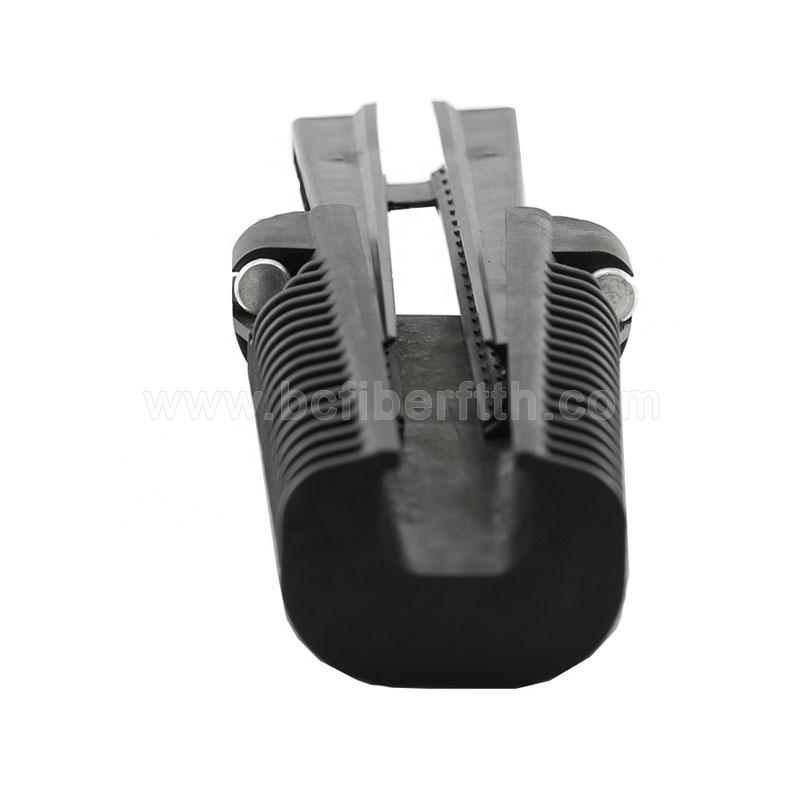

      Anchoring clamp consists of plastic body with elongated captive clamping wedges and flexible stainless steel bail. High-strength UV-stabilized plastic provides reliable fit in any environments.       Elongated wedges are designed for better contact area of cable sheath and there are multiple fixing ledges on them.
      Bail can be pulled out from the clamp body for easy attachment to the mounting rings.
      To protect the bail from tear and wear as well as for mechanical loading uniformity an anchor point is equipped with a plastic loop thimble.

Model	Suitable cable dia. (mm)	Materials		Breaking load	Weight
		Body / Wedges / Thimble	Bail
ACADSS10	6~10mm	UV Protected Thermoplastic	UV Protected Thermoplastic	5000N	0.4kg
ACADSS12	8~12mm
ACADSS14	10~14mm
ACADSS16	12~16mm
ACADSS18	14~18mm
ACADSS20	16~20mm
