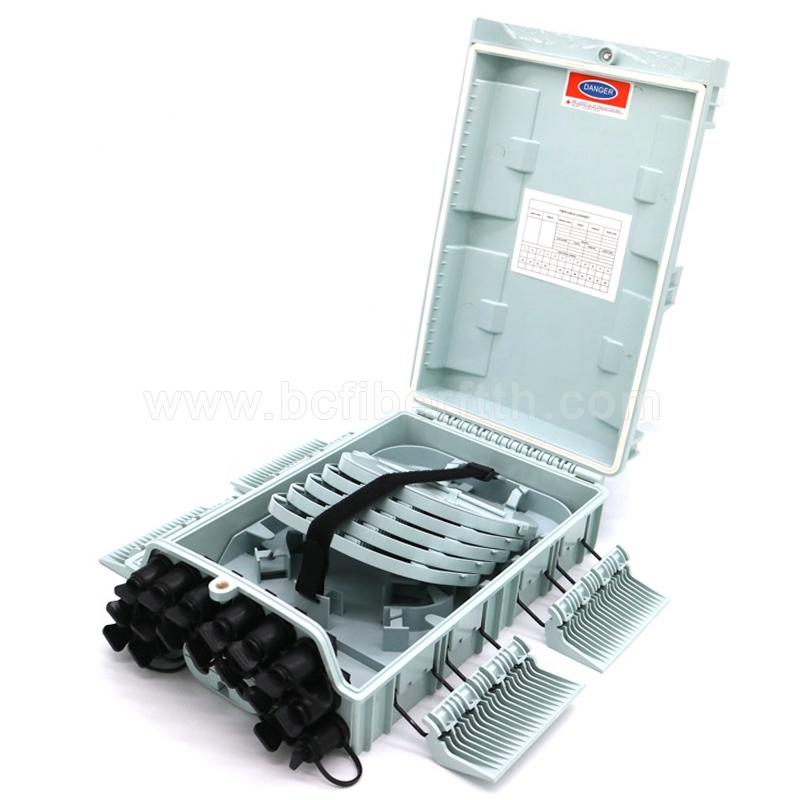

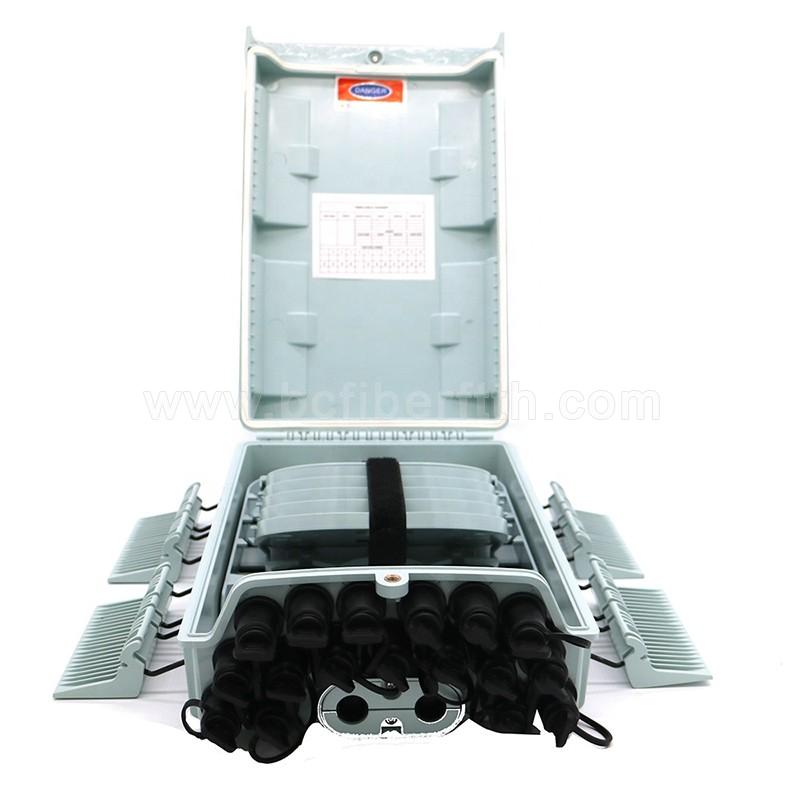

96 Cores 2*16 Outdoor FTTX FTTH Fiber Optic Splitter Distribution Box

Description

Fiber cable junction box,Fiber optic splitter Closure

Specification

Features:	Uncut Port For Feeder Cable	Material:	ABS
Dimension:	345*220*95mm	Max. Capacity:	96cores
Max. Splice Tray:	4pcs, 24fiber / Tray	Color:	Gray,Black
Adapter:	24SC	Seal Type:	Seal without Screw
Application:	FTTH Pole Mount Or Wall Mount	Cable outputs	16 ports for Mini Connector

Features:	Uncut Port For Feeder Cable	Material:	ABS
Dimension:	345*220*95mm	Max. Capacity:	96cores
Max. Splice Tray:	4pcs, 24fiber / Tray	Color:	Gray,Black
Adapter:	24SC	Seal Type:	Seal without Screw
Application:	FTTH Pole Mount Or Wall Mount	Cable outputs	8 ports for Mini Connector

Features

l Water-proof design with IP-65 Protection level.

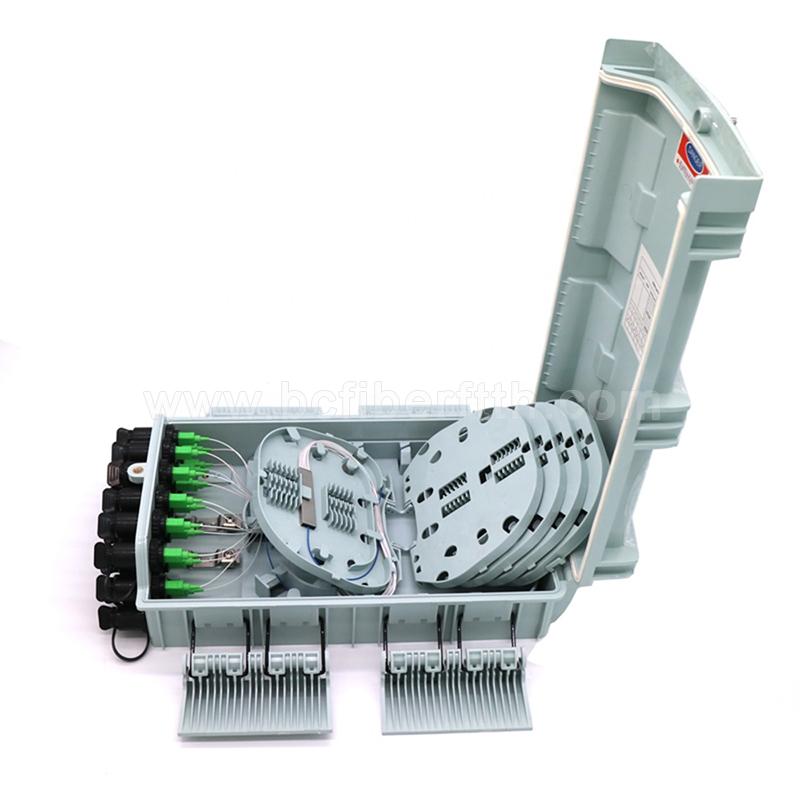

l Integrated with flap-up splice cassette and adapter holder.

l 96F splice capacity and 8 positions for SC adapters.

l Plug-and-play installation, easy for maintenance and expansion.

l Fiber bend radius control more than 40mm.

l 180 degree access with buckled lock structure.

l 1*8 PLC splitter can be installed in each splice tray as option.

l 8 pcs of pre-installed reinforced water-proof adapter for SC.

l 1 mid- span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrance for distribution cable(8-16.5mm).

Application

l Wall-mounted Installation

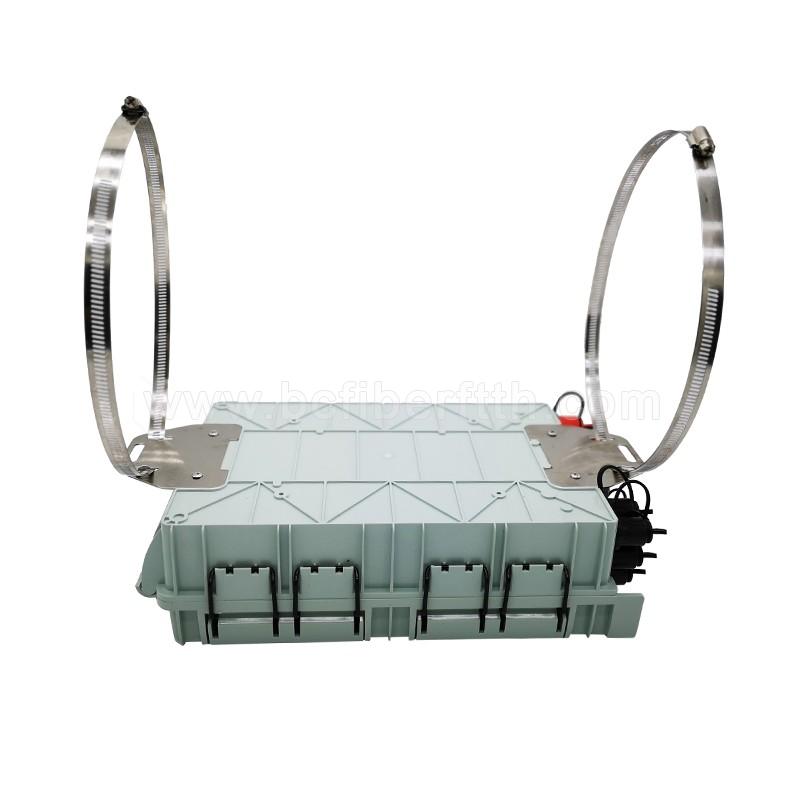

l Pole-mounted Installation

l Aerial-hanging Installation

l Suitable for Huawei pre-connectorized drop cable with reinforced connector

General Introduction

fiber access termination box is able to hold up to 8 subscribers.

It is used as a termination point for the feeder cable to connect with drop cable in FTTx network system.

It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.
